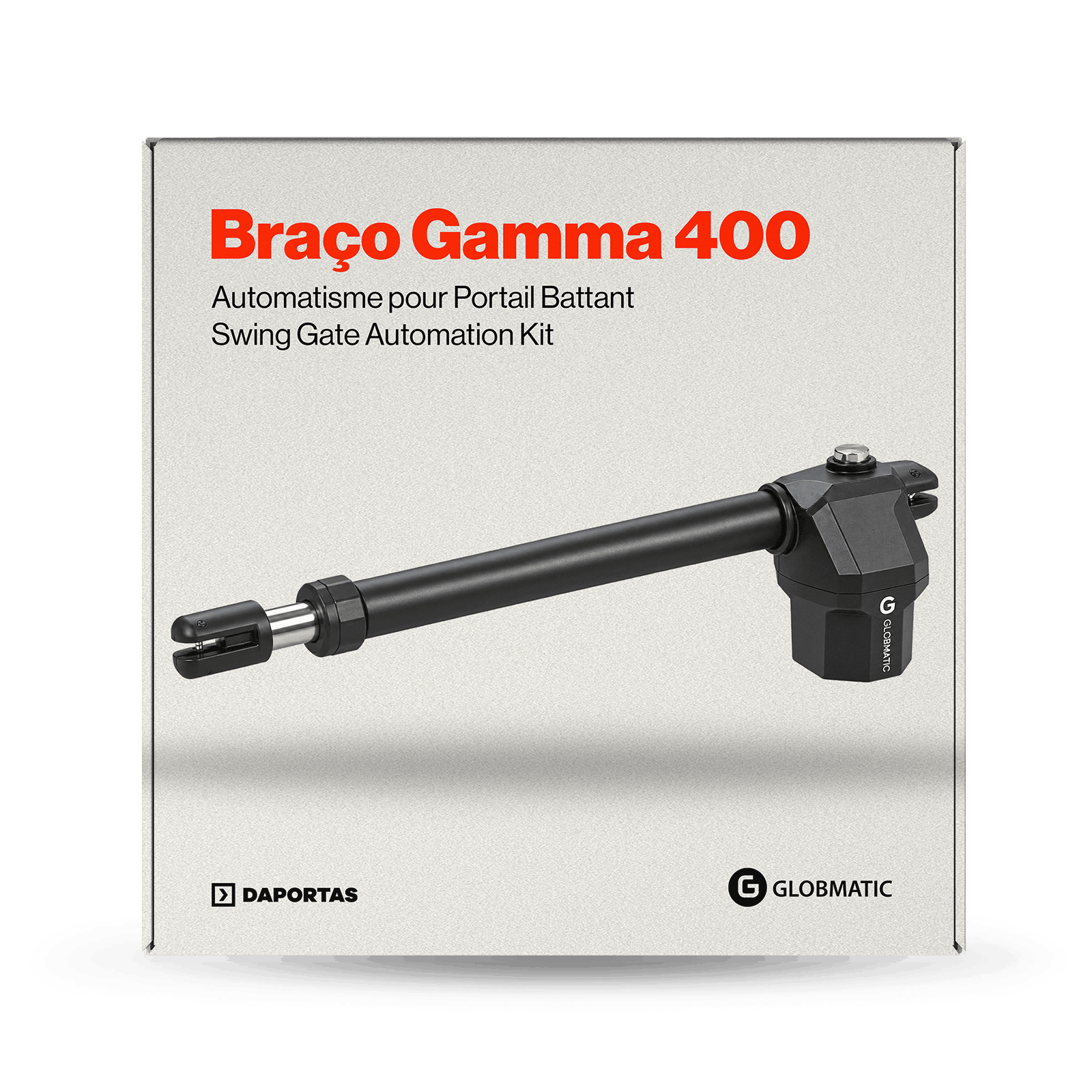

Globmatic GAMMA 400 230V Arm | Swing Gate Operator

Sales

Globmatic GAMMA 400 230V Arm | Swing Gate Operator

Available

169.43€ 208.40€ -19%

Price valid from 2026-09-01 to 2026-09-30

Best price in the last 30 days

Globmatic GAMMA 400 230V – Irreversible electromechanical linear actuator for swing gate leaves up to 3.5 metres and 250 kg.

The Globmatic GAMMA 400 230V is a linear swing gate operator designed for residential and commercial applications, combining robust construction with reliable operation.

Powered by a 230V AC motor, with 280 W of power and 2800 N of thrust, it is suitable for properly configured gate leaves up to 3.5 metres long and 250 kg.

The GAMMA 400 features an aluminium gearbox body designed for strength and durability, together with an irreversible electromechanical mechanism that keeps the gate mechanically locked when the operator is stopped.

It has an IP44 protection rating, an S3 = 40% duty cycle and an opening time of approximately 25 seconds at 90°.

The actuator measures approximately 770 mm closed and 1190 mm extended, with a height of 180 mm and width of 90 mm.

IMPORTANT: this product includes ONLY 1 Globmatic GAMMA 400 230V actuator. Control board, receiver, remote controls, photocells, second actuator and other kit components are not included.

Fast deliveries to the United Kingdom, Ireland and across Europe
www.daportas.com

Quantity

Add to wishlist

SKU: 9120010050015

Brand: Globmatic

Shipping to United States

Estimated shipping cost: Unavailable

Description

🛠️ Globmatic GAMMA 400 230V – Linear actuator for swing gates up to 3.5 m

The Globmatic GAMMA 400 is an electromechanical linear operator designed for swing gate automation and is available individually for new installations or replacement applications.

The 230V version delivers 280 W of power and 2800 N of thrust, making it suitable for gate leaves up to 3.5 metres and 250 kg when correctly installed and dimensioned.

Its aluminium gearbox body provides a strong mechanical structure, while the irreversible design keeps the gate mechanically secured when the operator is stopped.

⸻

🔑 Main features:

• ✅ Electromechanical swing gate actuator
• ✅ Globmatic GAMMA 400 model
• ✅ Motor supply: 230V AC
• ✅ Frequency: 50 Hz
• ✅ Rated power: 280 W
• ✅ Thrust: 2800 N
• ✅ Maximum specified leaf length: 3.5 m
• ✅ Maximum specified leaf weight: 250 kg
• ✅ 90° opening time: approximately 25 seconds
• ✅ Duty cycle: S3 = 40%
• ✅ Protection rating: IP44
• ✅ Operating temperature: -20 °C to +55 °C
• ✅ Irreversible electromechanical operator
• ✅ Aluminium gearbox body
• ✅ Robust construction
• ✅ Mechanical locking system
• ✅ Suitable for residential and commercial installations
• ✅ Suitable for single-leaf gates
• ✅ Can be used on double-leaf gates with two actuators
• ✅ Ideal for replacing an existing GAMMA actuator
• ✅ Available as an individual motor

⸻

📐 Approximate actuator dimensions:

• Closed length: 770 mm
• Extended length: 1190 mm
• Height: 180 mm
• Width: 90 mm

⸻

📦 What is included:

• 1 Globmatic GAMMA 400 230V Actuator

This product is NOT the complete automation kit.

Not included:

• Second GAMMA 400 actuator
• Electronic control board
• Control-board enclosure
• Radio receiver
• Remote controls
• Photocells
• Flashing light
• Other kit accessories

⸻

🏠 Ideal applications:

• Residential swing gates
• Gate leaves up to 3.5 m
• Gate leaves up to 250 kg
• Single-leaf gates
• Double-leaf gates using two actuators
• Private homes
• Apartment buildings
• Commercial entrances
• New automation installations
• Replacement of an existing GAMMA 400
• Globmatic system repairs
• Installations where only one motor needs replacing

⸻

📣 Why choose the Globmatic GAMMA 400 230V?

The GAMMA 400 combines 2800 N of thrust with a robust structure suitable for swing gate leaves up to 3.5 metres.

Its aluminium gearbox body provides mechanical strength, while the irreversible operation keeps the gate mechanically locked when stationary.

As it is supplied individually, it is particularly useful when only one actuator in an existing GAMMA installation needs replacing, avoiding the unnecessary purchase of a complete kit.

Supplied as 1 Globmatic GAMMA 400 230V actuator.

⸻
