Proteco Q60AB | 230V Swing Gate Control Board

Sales

Proteco Q60AB | 230V Swing Gate Control Board

Available

98.09€ 120.65€ -19%

Price valid from 2026-09-01 to 2026-09-30

Best price in the last 30 days

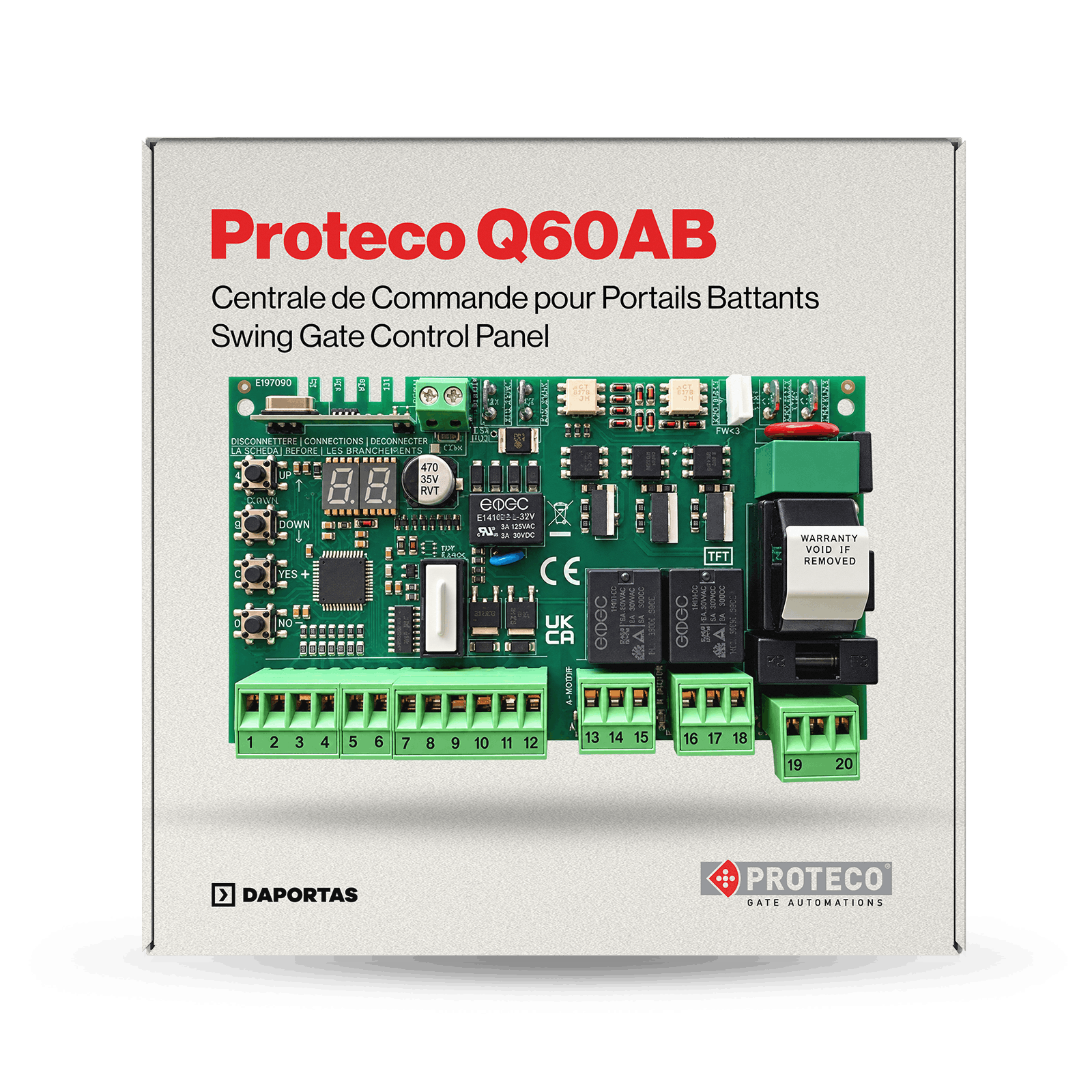

Proteco Q60AB – 230V electronic control board for single or double-leaf swing gates, with built-in 433.92 MHz receiver and LED display programming.

The Proteco Q60AB is designed to manage swing gate automation systems equipped with one or two 230V AC motors, providing a versatile solution for new installations, repairs and control-board replacement.

An integrated LED display simplifies programming and fault diagnostics, with individual adjustment of motor force, operating time and slowdown.

The built-in 433.92 MHz radio receiver can store up to 99 radio codes, reducing the need for an additional external receiver in compatible installations.

Functions include adjustable pedestrian opening, leaf delay, automatic and semi-automatic closing, step-by-step operation, opening priority, motor testing and photocell testing.

The Q60AB can control motors rated up to 600 W each and provides connections for photocells, safety edges, STOP, START, timer, flashing light and an optional electric-lock interface.

This product consists of the Proteco Q60AB electronic control board. Motors, remote controls, photocells, enclosure and other accessories are not included unless specifically stated.

Fast deliveries to the United Kingdom, Ireland and across Europe
www.daportas.com

Quantity

Add to wishlist

SKU: 9105010300018

Brand: Proteco

Shipping to United States

Estimated shipping cost: Unavailable

Description

⚡ Proteco Q60AB – 230V electronic control board for swing gate automation

The Proteco Q60AB is designed to control single or double-leaf swing gates using compatible 230V motors.

Its integrated display provides straightforward access to automation parameters and diagnostic information, while separate motor adjustments allow the movement of each gate leaf to be configured individually.

⸻

🔑 Main features:

• ✅ Swing gate electronic control board
• ✅ Controls 1 or 2 motors
• ✅ For 230V AC motors
• ✅ Main power supply: 230V AC – 50/60 Hz
• ✅ Maximum motor power: 600 W each
• ✅ Integrated LED display
• ✅ Programming and fault diagnostics
• ✅ Individual motor-force adjustment
• ✅ Individual operating-time adjustment
• ✅ Individual slowdown adjustment
• ✅ Adjustable leaf delay
• ✅ Single-leaf mode
• ✅ Adjustable pedestrian opening
• ✅ Automatic closing
• ✅ Semi-automatic operation
• ✅ Step-by-step operation
• ✅ Multi-user function with opening priority
• ✅ Motor test function
• ✅ Photocell test function
• ✅ Built-in 433.92 MHz radio receiver
• ✅ Memory for up to 99 radio codes
• ✅ START input
• ✅ STOP input
• ✅ Pedestrian opening input
• ✅ Opening and closing photocell inputs
• ✅ 8K2 resistive safety-edge compatibility
• ✅ Timer input
• ✅ 24V AC flashing-light output
• ✅ 24V DC accessories output
• ✅ Provision for optional electric-lock module
• ✅ Plug-in terminal blocks
• ✅ Fault-event memory for diagnostics

⸻

📦 What is included:

• 1 Proteco Q60AB Electronic Control Board

Motors, remote controls, photocells, protective enclosure, electric-lock module and other accessories are not included unless specifically stated.

⸻

🏠 Ideal applications:

• Proteco swing gate automation
• Single-leaf swing gates
• Double-leaf swing gates
• Compatible 230V gate motors
• New installations
• Replacement of faulty control boards
• Existing-system upgrades
• Proteco automation repairs
• Residential gates
• Communal entrances

⸻

📣 Why choose the Proteco Q60AB?

The Q60AB combines comprehensive swing-gate control with straightforward programming and diagnostic functions.

Independent motor settings are particularly useful for double-leaf gates, while the built-in radio receiver simplifies the overall installation.

Safety-device inputs and configurable operating modes make the Q60AB suitable for both new systems and the repair or modernisation of existing Proteco automation.

⸻
