Radio Receiver Roger R93/RX20/U

Available

62.27€ 83.03€ -25%

Price valid from 2026-06-01 to 2026-06-30

Best price in the last 30 days

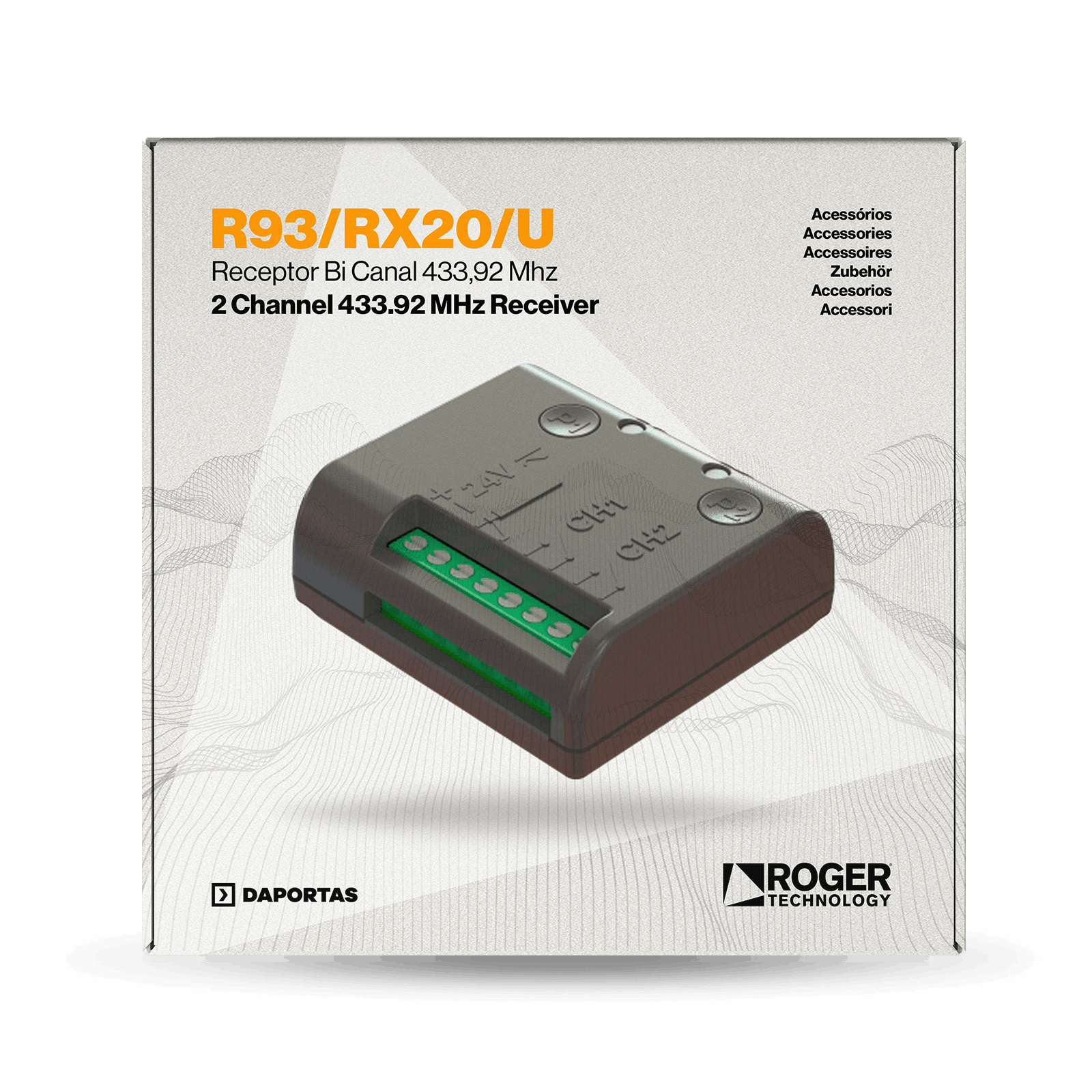

Roger R93/RX20/U – 433.92 MHz 2-Channel Universal Radio Receiver for Automation Systems

Radio reception, compatibility and Roger Technology engineering for automatic gates, garage doors, automatic barriers and access control systems.

The Roger R93/RX20/U is a 2-channel universal radio receiver designed for Roger Technology automation systems and compatible systems operating on the 433.92 MHz frequency. With capacity to store up to 50 codes, it allows compatible remote controls to be integrated into automatic gate, garage door, barrier and residential or commercial access installations.

This model works with Fixed Code, making it suitable for systems using transmitters compatible with this technology. Its 2 independent channels allow two different functions to be controlled, such as full opening and pedestrian opening, or two separate automation systems, depending on the installation and control unit used.

Designed for installation in a plastic housing, the Roger R93/RX20/U is a practical solution for replacing, complementing or adding an external receiver to existing automation systems. Its relay output allows simple integration with different compatible automation control units, offering a versatile solution for remote access control.

Powered by 12/24V AC/DC, this receiver offers low energy consumption and stable operation in residential, commercial and professional applications. The AM/ASK modulation, 433.92 MHz frequency and -107 dBm sensitivity contribute to effective signal reception under suitable installation conditions.

From a technical point of view, the Roger R93/RX20/U features 12/24V AC/DC power supply, 30 mA consumption, operating temperature between -10°C and +55°C, 2 channels, Fixed Code encoding, AM/ASK modulation, 433.92 MHz carrier frequency, relay output, maximum relay contact current of 0.5A and maximum relay contact voltage of 24V AC/DC. The receiver can store up to 50 codes and has compact dimensions of approximately 55 x 44 x 20 mm.

Thanks to its 2 channels, capacity to store up to 50 codes and external installation in a plastic housing, the Roger R93/RX20/U is an excellent choice for anyone looking for a reliable, compact and functional radio receiver for compatible automation systems.

Fast deliveries across Europe and the United Kingdom
www.daportas.com | www.daportas.net

Quantity

Add to wishlist

SKU: 9113000260013

Brand: ROGER

Shipping to United States

Estimated shipping cost: Unavailable

Description

🛠️ Roger R93/RX20/U – 433.92 MHz 2-Channel Universal Radio Receiver for Automation Systems

Radio reception, compatibility and Roger Technology engineering for automatic gates, garage doors, automatic barriers and access control systems.

The Roger R93/RX20/U is a 2-channel universal radio receiver designed for Roger Technology automation systems and compatible systems operating on the 433.92 MHz frequency. With capacity to store up to 50 codes, it allows compatible remote controls to be integrated into automatic gate, garage door, barrier and residential or commercial access installations.

This model works with Fixed Code, making it suitable for systems using transmitters compatible with this technology. Its 2 independent channels allow two different functions to be controlled, such as full opening and pedestrian opening, or two separate automation systems, depending on the installation and control unit used.

Designed for installation in a plastic housing, the Roger R93/RX20/U is a practical solution for replacing, complementing or adding an external receiver to existing automation systems. Its relay output allows simple integration with different compatible automation control units, offering a versatile solution for remote access control.

Powered by 12/24V AC/DC, this receiver offers low energy consumption and stable operation in residential, commercial and professional applications. The AM/ASK modulation, 433.92 MHz frequency and -107 dBm sensitivity contribute to effective signal reception under suitable installation conditions.

From a technical point of view, the Roger R93/RX20/U features 12/24V AC/DC power supply, 30 mA consumption, operating temperature between -10°C and +55°C, 2 channels, Fixed Code encoding, AM/ASK modulation, 433.92 MHz carrier frequency, relay output, maximum relay contact current of 0.5A and maximum relay contact voltage of 24V AC/DC. The receiver can store up to 50 codes and has compact dimensions of approximately 55 x 44 x 20 mm.

Thanks to its 2 channels, capacity to store up to 50 codes and external installation in a plastic housing, the Roger R93/RX20/U is an excellent choice for anyone looking for a reliable, compact and functional radio receiver for compatible automation systems.

Fast deliveries across Europe and the United Kingdom
www.daportas.com | www.daportas.net

⸻

🔑 Main features:

• Roger Technology universal radio receiver
• 433.92 MHz frequency
• 2 independent channels
• Fixed Code encoding
• Capacity to store up to 50 codes
• AM/ASK modulation
• 12/24V AC/DC power supply
• Low consumption: 30 mA
• Relay output
• Maximum relay contact current: 0.5A
• Maximum relay contact voltage: 24V AC/DC
• Sensitivity: -107 dBm
• Input impedance: 50 Ω
• Operating temperature between -10°C and +55°C
• Compact dimensions: approximately 55 x 44 x 20 mm
• Supplied in plastic housing
• Suitable for compatible automatic gates, garage doors, barriers and access systems

⸻

📦 Product contents:

• 1 Roger R93/RX20/U receiver
• Plastic housing
• Installation manual / instructions, according to the manufacturer’s packaging

⸻

🏠 Ideal applications:

• Automatic sliding gates
• Automatic swing gates
• Garage doors
• Automatic barriers
• Condominiums
• Houses
• Shared garages
• Commercial access points
• Access control systems compatible with 433.92 MHz
• Installations with compatible Fixed Code remote controls
• Replacement or addition of existing receivers

⸻

🔄 Compatibility:

The Roger R93/RX20/U is suitable for Roger Technology systems and automation systems compatible with 433.92 MHz Fixed Code remote controls.

Before purchasing, always confirm whether the existing remote control and automation control unit are compatible with 433.92 MHz Fixed Code receivers. Frequency alone does not guarantee compatibility between remotes and receivers; the type of encoding and installed system must also be confirmed.

⸻

📣 Why choose the Roger R93/RX20/U?

Because it is an original Roger Technology radio receiver, compact, versatile and suitable for installations where a 2-channel Fixed Code receiver needs to be added or replaced.

The Roger R93/RX20/U combines 433.92 MHz frequency, 2 channels, 50 storable codes and relay output, offering a practical solution for controlling compatible automatic gates, garage doors, barriers and access points.
